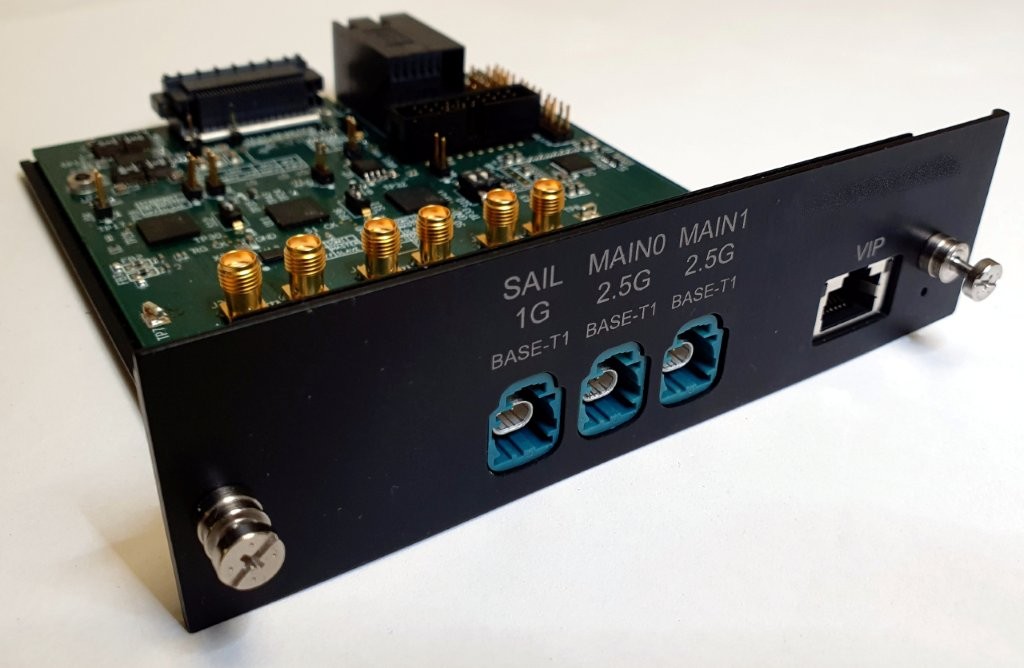

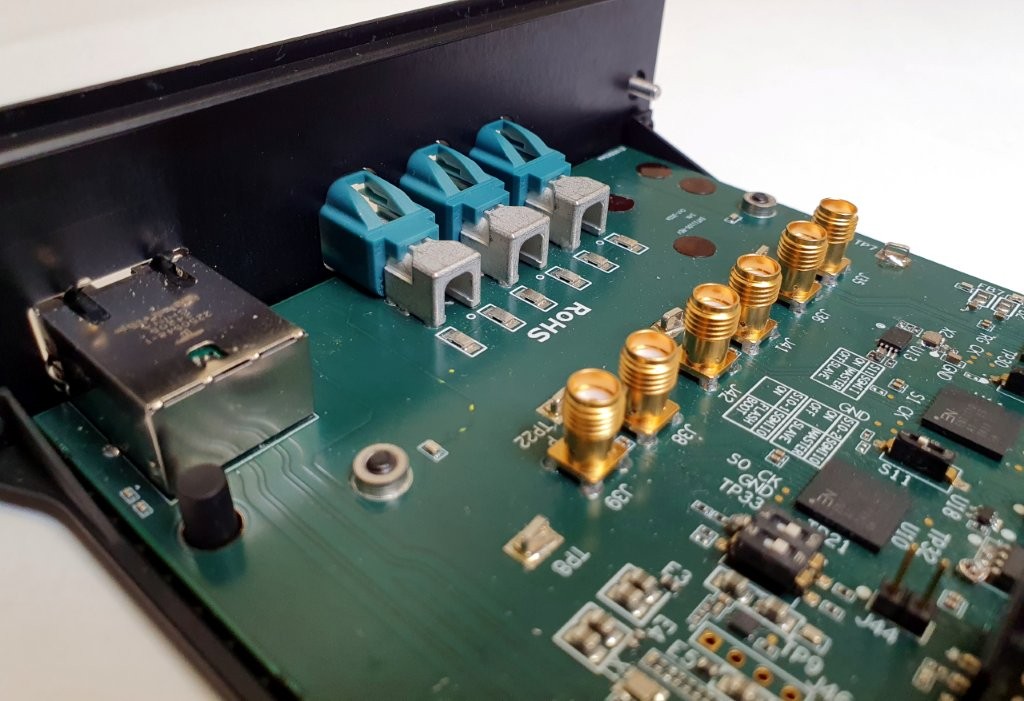

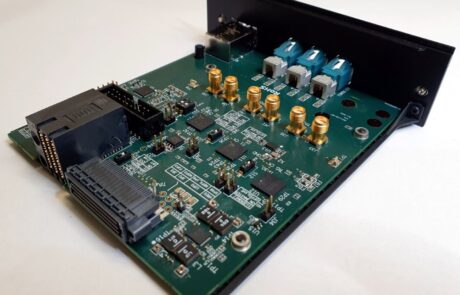

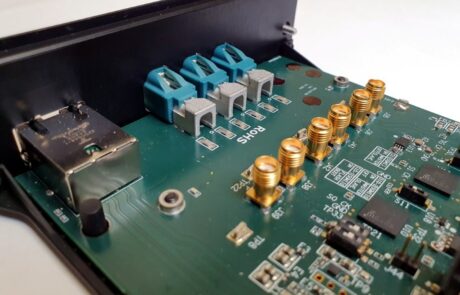

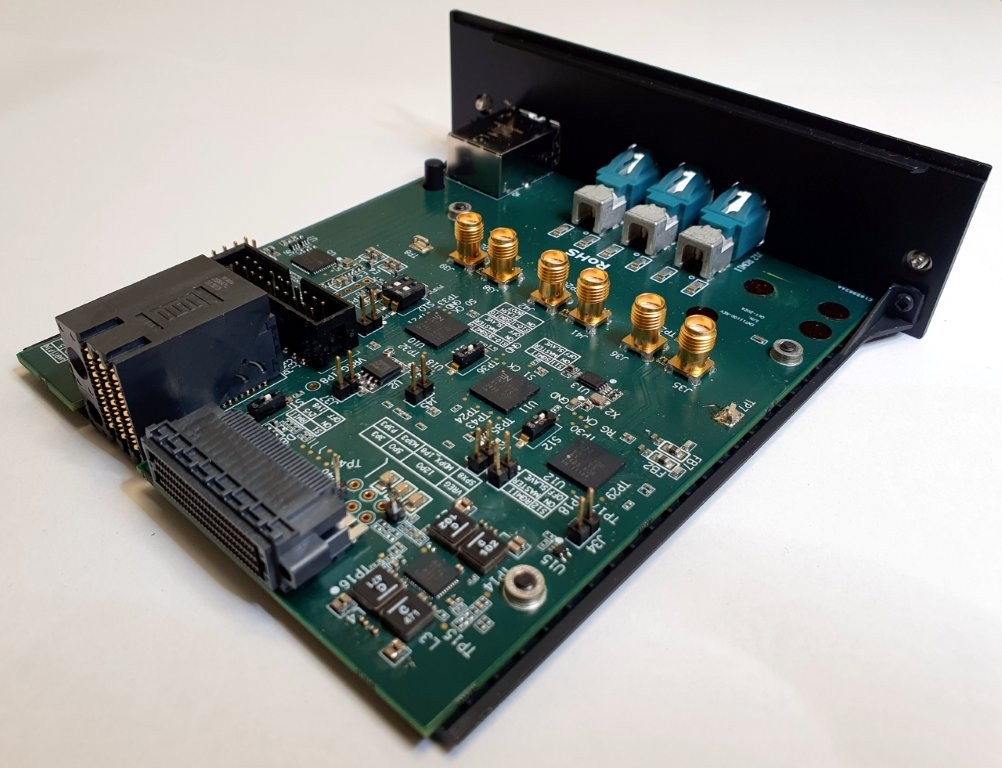

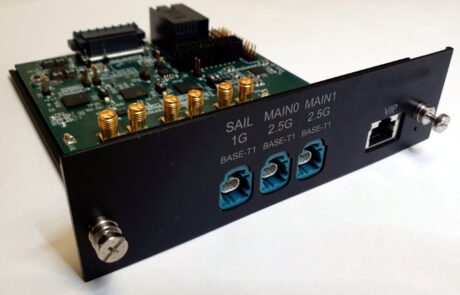

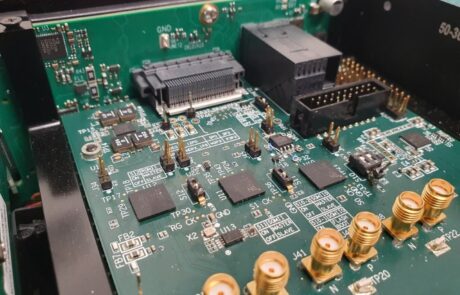

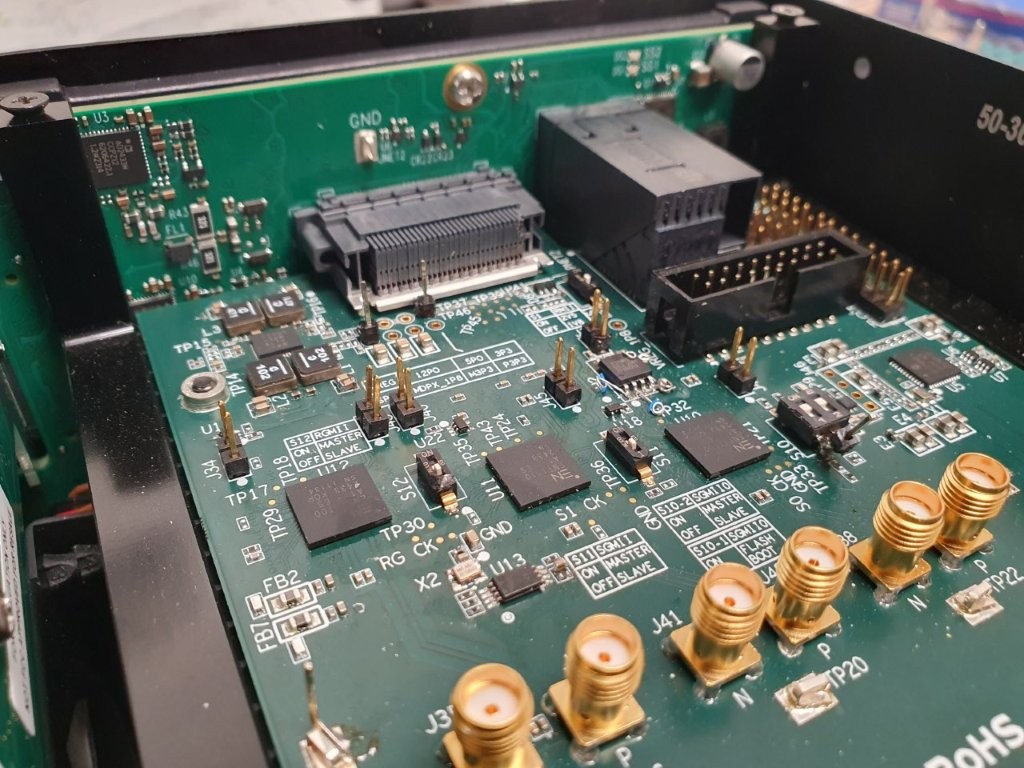

10GBase-T1 PHY Evaluation Board

Hardware

WHO	Automotive PHY OEM
WHY	Customer needed hardware resource to support in-house ASIC and software engineering teams to develop a demonstrator board for the Qualcomm Ride SX 4.0 Development Platform
WHAT	Technical feasibility Hardware design, development, manufacture, testing and documentation Working closely with PHY team to bring up device functionality
TECHNOLOGY	1GBase-T1, 2.5GBase-T1, 5GBase-T1, 10GBase-T1 RGMII, SGMII, I2C, SPI Serial 10Gbps on FR4 substrate
TOOLCHAINS	OrCad schematic capture and layout
PROCESS	Xentech’s Full Development Process and toolchains
WHEN	2024
